Your Inogen portable oxygen concentrator is only as reliable as its battery. When that battery stops charging, drains too fast, or flashes error lights, it's not just annoying — it can mess up your whole day.
Here's the thing: most battery issues don't mean you need a new concentrator. In fact, a lot of these problems you can fix yourself in under 10 minutes — no tools needed.
I've gone through the official Inogen manuals, dug through user forums (Mayo Clinic Connect, Pulmonary Fibrosis News, Reddit's r/COPD community), and pulled together the 7 most common battery complaints. For each one, I'll show you what's going wrong and exactly what to do about it.
One note before we start: If your battery is 3+ years old and showing multiple symptoms on this list, skip to the replacement section. No amount of troubleshooting can reverse normal battery wear.
Quick Diagnostic Checklist
Before you dive into the detailed fixes, run through this checklist first. It solves about 40% of battery problems right away.
| Symptom | Most Likely Cause | Quick Check |
|---|---|---|
| Battery won't charge at all | Dead outlet or loose connection | Try a different wall outlet |
| Charger light won't turn on | Faulty AC power supply | Does the green light come on when plugged into the wall (without the device)? |
| Battery drains in under an hour | Old battery (2+ years) | How long have you had it? |
| "Remove Battery to Cool" message | Battery too hot | Move to a cooler room, wait 10-15 minutes |
| Device runs on AC but dies on battery | Battery can't hold charge | Try a different battery if you have one |
| Red blinking light on charger | Charging error | Remove and re-seat the battery |
If none of these quick checks solve your problem, keep reading. I'll walk you through the fixes for each issue.
Problem 1: Battery Won't Charge at All
This is the #1 complaint I see from Inogen users. You plug everything in and… nothing. No lights, no sign of charging.
What's Going On
Your battery needs two things to charge: a working power source and clean contact with the charger. When either one fails, the charging circuit never starts.
Step-by-Step Fix
Step 1: Test the wall outlet.
Plug something else into the same outlet — a lamp or phone charger. If that doesn't work either, the problem is the outlet, not your Inogen. Try another outlet.
Step 2: Check the AC power adapter's green light.
Look at the rectangular box on your charger cable. There's a small green LED on it. When you plug it into the wall (without connecting it to the device), that light should come on.
- If the green light is ON → Your power adapter is working. The problem is with the battery, the device, or the connection between them. Go to Step 3.
- If the green light is OFF → Your AC power adapter is dead. You need a replacement charger or battery.
Step 3: Clean the battery contacts.
Dust, lint, and corrosion on the metal contacts can break the charging circuit. Take a soft, dry cloth (or a cotton swab with a tiny bit of isopropyl alcohol) and gently clean the metal squares on both the battery and inside the battery bay.
Step 4: Perform a hard reset.
This is the fix that works surprisingly often:
- Turn the device OFF.
- Remove the battery.
- Plug the device into wall power WITHOUT the battery.
- Let it sit powered on for 5 minutes.
- While it's still plugged in, reinsert the battery.
- Check if charging starts.
Step 5: Try a different power source.
If you have the DC car charger, try charging through that. If the battery charges in the car but not on the wall charger, your AC adapter is the problem — not the battery.
Problem 2: Charger Light Blinking Red (or No Green Light)
That blinking red light is your charger saying "something's wrong, and I can't fix it myself."
What It Means
| Light Pattern | Meaning |
|---|---|
| Solid red | Charging normally (all good) |
| Solid green | Fully charged |
| Blinking red | Charging fault — poor connection, overheating, dead battery, or hardware failure |
| No light at all | No power reaching the charger |
How to Fix It
Check the connection first. Remove the battery and put it back in firmly. Push until you hear the latch click. A loose battery is the most common cause of a blinking red light.
Check for overheating. If the battery feels hot to the touch, unplug everything and let it cool for 15 minutes. Inogen devices have built-in temperature sensors — if the battery is too hot, the charger refuses to charge it. This is a safety feature, not a defect.
Check for a deeply discharged battery. If your battery has been sitting unused for months (or years), it may be so drained that the charger can't even detect it. Keep the charger connected for at least 15-20 minutes. Sometimes that's enough to bring it back to a minimal charge level where normal charging can take over.
Still blinking? If you've tried all of the above and the light still blinks red, the battery itself is likely dead and needs to be replaced.
Problem 3: Battery Drains Too Fast or Won't Hold a Charge
You charge it to full, but an hour later it's dead. Or maybe the battery indicator jumps from 75% to 10% in minutes.
Is Your Battery Actually Dying?
First, let's figure out if the battery is really failing — or if you're just running it harder than usual.
Lithium-ion batteries lose capacity over time. Here's what the normal degradation looks like:
| Battery Age | Expected Runtime (% of original) |
|---|---|
| Brand new | 100% |
| 1 year | 90–95% |
| 2 years | 85–90% |
| 3 years | 75–85% |
| 4 years | 65–75% |
| 5+ years | 55–70% or less |
How to Test Your Battery
Run a timed test. Charge the battery to 100%. Set your Inogen to your usual flow setting. Start a timer. See how long it runs before the low-battery alert. Compare it to the chart below:
| Flow Setting | New BA-500 (8-Cell) Runtime | New BA-516 (16-Cell) Runtime |
|---|---|---|
| 1 | ~6.5 hours | ~13 hours |
| 2 | ~5 hours | ~10 hours |
| 3 | ~3.5 hours | ~7 hours |
| 4 | ~2.5 hours | ~5 hours |
| 5 | ~1.8 hours | ~3.8 hours |
| 6 | ~1.4 hours | ~2.8 hours |
If your runtime is less than 60% of what the chart says for a new battery, it's time to replace it. See replacement options for your model →
Check the LED indicator on the battery itself. Press the button on the battery:
- 4 LEDs = 75–100% (healthy)
- 3 LEDs = 50–75%
- 2 LEDs = 25–50%
- 1 LED = 10–25%
- 1 LED blinking = under 10% (charge immediately)
If the LEDs show a full charge but the device dies quickly, the battery's internal monitoring chip may need calibration. Try a full discharge-recharge cycle: use the battery until the device shuts off, then charge it uninterrupted to 100%.
Problem 4: "Remove Battery to Cool" or "Battery HOT" Warning
You're using your Inogen and suddenly the screen shows a temperature warning. It shuts down charging or even turns off the oxygen flow.
Don't Panic — This Is a Safety Feature
Inogen devices monitor battery temperature constantly. If the battery gets above ~113°F (45°C) during charging or use, the device pauses to protect itself — and you.
What to Do Right Now
- Turn off the device.
- Remove the battery. Set it in open air, not on a blanket or couch cushion.
- Wait 10-15 minutes. Let the battery cool down naturally. Don't put it in the fridge or freezer — rapid temperature changes damage lithium-ion cells.
- Check your environment. Were you in direct sunlight? A hot car? A room above 95°F (35°C)? Move to a cooler spot before restarting.
- Check the device vents. Are the air intake vents blocked by clothing, a bag, or dust? Clean the filters and make sure nothing is covering the vents.
If It Keeps Happening
A battery that overheats repeatedly — even in normal room temperature — is usually a sign of internal cell damage. Stop using that battery and replace it. Continuing to use an overheating battery is a fire risk.
Problem 5: Device Won't Turn On (Even with Battery)
You press the power button and nothing happens. No lights, no beeps, no fan.
Quick Checks
- Is the battery actually charged? Press the battery's LED button. If no lights come on, the battery is dead. Charge it.
- Is the battery seated correctly? Remove it and reinsert until the latch clicks.
- Try AC power without the battery. Plug the device directly into the wall without the battery installed. If it turns on, the problem is your battery. If it doesn't turn on, the problem is the device itself.
Hard Reset Procedure (G3, G4, G5, Rove 6)
- Remove the battery.
- Unplug from all power sources.
- Press and hold the power button for 30 seconds (yes, the full 30).
- Release.
- Plug into wall power (no battery).
- Try turning it on.
This drains any residual charge in the device's circuits and forces a full restart. It fixes a surprising number of "won't turn on" issues.
Problem 6: "Check Battery" or "Battery Error" Message
The device recognizes there's a battery but doesn't like what it sees.
What Causes This
- Corroded or dirty contacts — The device can't get a clean reading from the battery.
- Incompatible battery — You're using a G3 battery in a G5 device (or vice versa). They're not cross-compatible, even though the connectors look similar.
- Battery firmware issue — Rare, but sometimes the battery's internal chip and the device get out of sync.
- Failed battery cell — One or more cells inside the battery have died.
Fix Steps
- Clean the contacts (same method as Problem 1, Step 3).
- Remove the battery for 60 seconds, then reinsert.
- Try a different battery if you have one. If the second battery works, the first one is the problem. Find a compatible replacement battery here.
- If the error shows up with multiple batteries, the problem is the device's charging circuit — contact Inogen support.
💡 Hot-swap tip for G5 and Rove 6 users: These models support battery swaps without interrupting oxygen delivery. You have about 30 seconds to pop out the old battery and click in the new one before the device alarms. That means you can carry a spare and swap on the go — no need to shut down.
Problem 7: Battery Is Swollen, Leaking, or Physically Damaged
⚠️ This is the one problem you should NOT try to fix yourself.
What to Look For
- The battery case looks bulging, puffed up, or cracked
- You see liquid or white crusty residue around the battery
- The battery doesn't fit smoothly into the device anymore
- It smells like chemicals or burning plastic
What to Do
- Stop using the battery immediately. Do not try to charge it.
- Remove it from the device and place it somewhere non-flammable — away from anything that can catch fire.
- Do not throw it in the trash. Lithium-ion batteries need special disposal. Take it to a battery recycling center, an electronics store with a recycling program, or a household hazardous waste facility.
- Order a replacement.
A swollen lithium battery is a fire hazard. Don't take chances with it.
When to Replace vs. When to Repair
After going through these fixes, you're probably wondering: should I keep troubleshooting, or is it time for a new battery?
I've seen batteries last 4+ years with light use, and I've also seen them die in 18 months when someone runs them 12 hours a day on high settings. So take the age guidelines below as a rough starting point — your actual experience depends a lot on how hard you push your equipment.
Here's a quick decision guide:
| Your Situation | Recommendation |
|---|---|
| Battery is under 1 year old, won't charge | Try all the resets and contact cleaning first. It's probably fixable. Contact Inogen if under warranty. |
| Battery is 2-3 years old, runs but drains fast | Normal wear. You can still use it, but start planning for a replacement. |
| Battery is 3+ years old, barely holds a charge | Time to replace. At this age, even "fixing" it won't bring back much runtime. |
| Battery shows physical damage (swelling, leaking) | Replace immediately. Do not attempt repair. |
| Multiple batteries fail in the same device | The device is the problem, not the batteries. Contact Inogen support at 1-877-466-4364. |
| Device runs on AC but no battery works | Possible internal charging circuit failure. Contact support. |
⚠️ Important: Inogen's official battery care card states: "Non-compliance with these guidelines will reduce battery life and may void your warranty." One key guideline most users don't know: leaving a fully charged battery inside an idle device can permanently damage it in as little as 20 days due to slow trickle discharge. Always remove the battery from the device when storing it.
Pro tip for multi-battery users: If you rotate between 2-3 batteries, label them (1, 2, 3) and use them in order. This keeps all your batteries aging at roughly the same rate, instead of having one worn-out battery and one that's barely been used. Every 90 days, do a full discharge-recharge cycle on each battery to keep the monitoring chip calibrated.
Frequently Asked Questions
What does NOT work for fixing Inogen battery problems?
A few things people try that either don't help or make things worse: (1) Putting the battery in the freezer — rapid cooling damages the cells and creates condensation inside the battery. Let it cool naturally in open air instead. (2) Using a generic lithium-ion charger — Inogen batteries use a proprietary connector and communication protocol. A generic charger won't work and may damage the battery. Stick with the official AC or DC charger. (3) Tapping or shaking the battery — if a battery has a loose internal connection, physical force can make it worse or cause a short circuit. If cleaning contacts and resets don't work, the battery needs professional service or replacement.
How long should an Inogen battery last before needing replacement?
Most Inogen batteries last about 2-3 years with regular daily use, or roughly 500 charge cycles. After that, you'll notice runtime dropping to 60-70% of what it was when new.
Can I use a G3 battery in my G5 device?

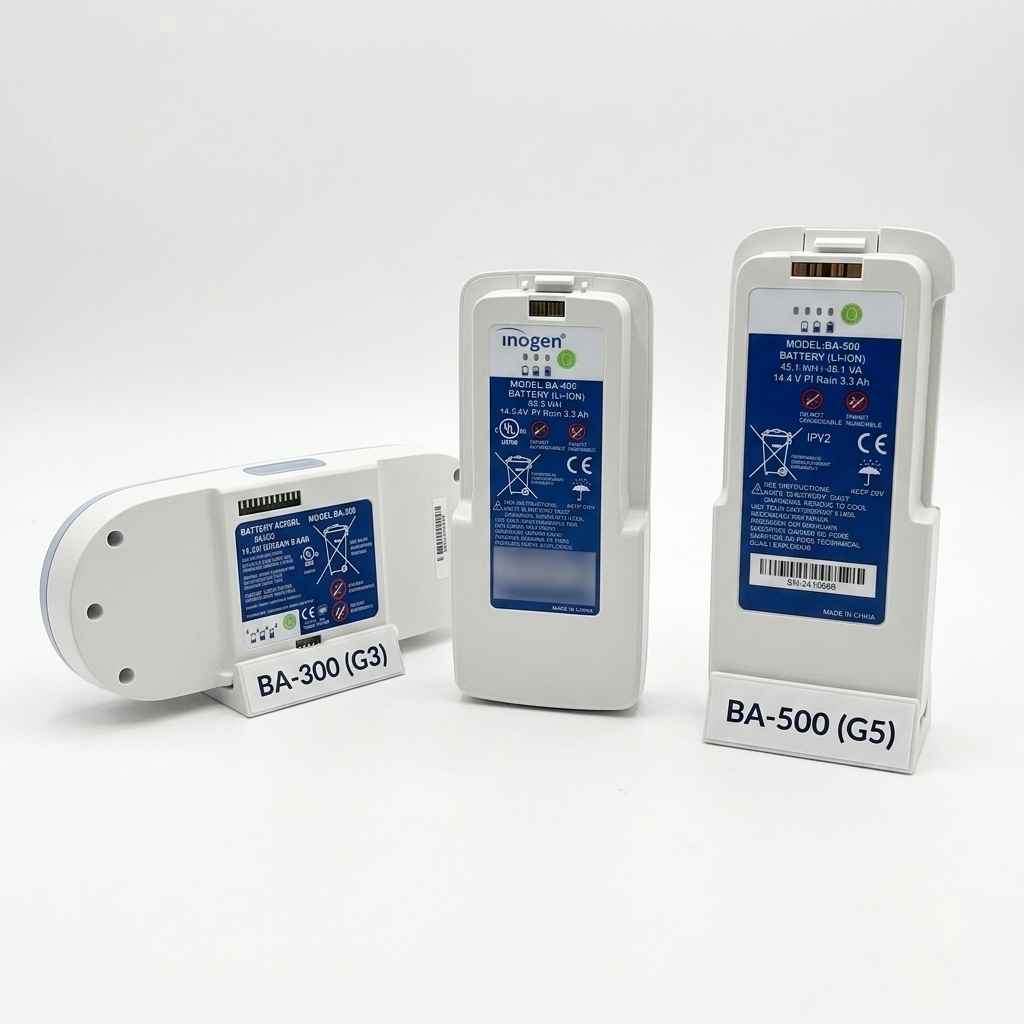

No. Inogen batteries are model-specific. A G3 battery (BA-300/BA-316) will not work in a G5 device, and a G5 battery (BA-500/BA-516) won't work in a G3. They use different connectors and communication protocols, even though the voltage is the same.
Why does my battery die faster on higher flow settings?
Higher flow settings make the concentrator work harder — it's pushing more oxygen through the sieve beds with each breath. That takes more power. A BA-500 that lasts 6.5 hours on setting 1 will only last about 1.4 hours on setting 6.
What's the difference between an 8-cell and 16-cell battery?
An 8-cell battery is a single battery pack — lighter, smaller, and shorter runtime. A 16-cell battery is essentially two 8-cell packs in one housing — about twice the runtime but also heavier and more expensive. The 8-cell is good for daily errands. The 16-cell is better for all-day outings and air travel.
Can I charge my Inogen battery with a power bank?
No. Inogen batteries need their specific AC or DC charger. A generic USB power bank won't work — the voltage and connector are completely different.
Is it safe to leave my battery charging overnight?
Yes. Inogen chargers are designed to stop charging when the battery is full, so you won't overcharge it. That said, for best long-term battery health, it's better to unplug once it reaches 100% rather than leaving it on the charger for days at a time.
What does it mean when the battery shows 4 lights but dies quickly?
This usually means the battery's internal monitoring chip needs calibration. The chip thinks the battery has more charge than it actually does. Try a full discharge (use until the device shuts off) followed by an uninterrupted full charge. If that doesn't fix it, the battery cells themselves are worn out.
