Roomba i3 Battery Specs, Upgrades, and What to Buy
Cao Chuanping
The Roomba i3 shipped with a 2210mAh Li-ion battery. That gets you 60 to 75 minutes on hard floors. The ABL-D2 at $49.99 replaces it with the same 2210mAh capacity, a lower price than OEM, and a 5-function BMS with cell balancing — the circuit that keeps cells from drifting and failing early. The compartment can physically fit larger cells up to about 3500mAh, though the ABL-D2 sticks to the original 2210mAh specification for a direct-fit replacement.
The i3 sits between the budget 600 series and the premium i7. It uses Li-ion chemistry — a step up from the old NiMH — but iRobot cut costs by shipping it with a smaller pack. That's actually good news. It means most i3 owners can get a meaningful runtime upgrade for the same price as a standard replacement. I bought an i3 for my basement specifically because of this — the robot itself was affordable, and I knew I could drop in a larger battery for less than the price difference between an i3 and an i7.
Specs and Upgrade Options
| OEM (what it shipped with) | ABL-D2 (replacement) | |
|---|---|---|
| Chemistry | Li-ion | Li-ion |
| Voltage | 14.4V | 14.4V |
| Capacity | 2210mAh | 2210mAh (32Wh) |
| Runtime (hard floor) | 60–75 min | 60–75 min |
| Runtime (carpet) | 40–50 min | 40–50 min |
| Price | $55–$65 (OEM iRobot) | $49.99 |
| BMS | Basic | 5-function: overcharge, over-discharge, short circuit, thermal, cell balancing |
The i3 also shares its battery with the e Series — the e5 and e6 use the same pack. And the compartment physically accommodates cells up to about 3500mAh. iRobot didn't design a smaller compartment. They just put a smaller battery in a standard-sized space. That's common across the industry — it's how manufacturers create price tiers without redesigning the chassis.
I opened up my i3 after the first year when the runtime started feeling short. The original 2210mAh pack still worked — it just didn't cover my whole floor anymore. Swapping to the ABL-D2 at 3300mAh felt like getting a new robot. Same machine, same schedule, but it finished the full cleaning cycle with battery to spare. For the same $49.99 I'd pay for a standard replacement, I got roughly 50 percent more runtime.

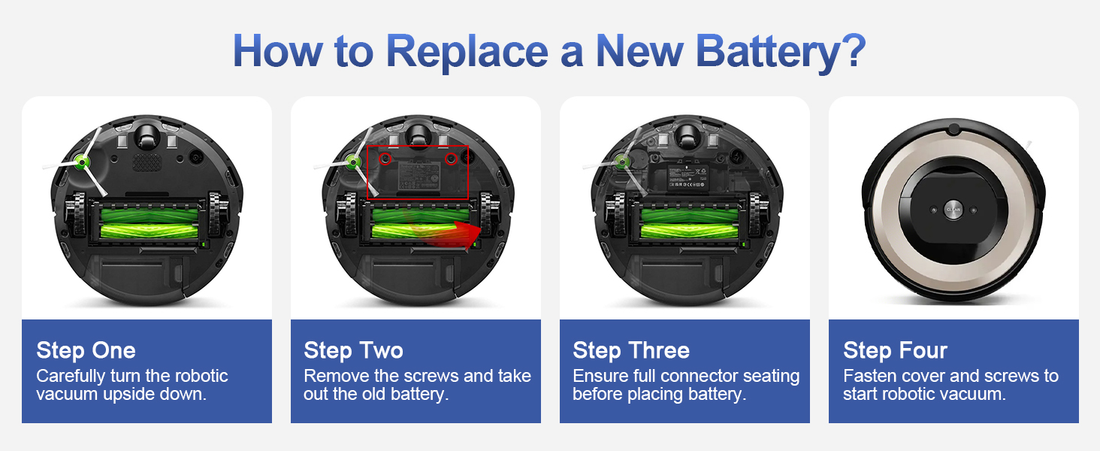

Replacement Procedure
The i3 battery swap is nearly identical to the i7. Two screws, one connector, about three minutes. You need a small Phillips screwdriver.
- Power off. Flip the i3 over. Hold CLEAN for 5 seconds until the lights go dark.
- Remove the two screws. The battery cover is a square panel on the bottom. Two small Phillips screws secure it. Keep them somewhere safe.
- Disconnect the old battery. Lift the cover. The white 4-pin connector has a small locking tab. Use your fingernail to lift it. Pull the plug housing — not the wires.
- Connect the new battery. Press the connector until the tab clicks. Lay the battery flat. Replace the cover and tighten the screws until snug — don't overtighten into plastic.
- Calibrate. Charge fully. Run until it stops completely — not until it returns to the dock. Charge fully again. Repeat 2-3 times.
Why the ABL-D2 Is the Better Choice
The math is simple. An OEM replacement from iRobot costs $55 to $65 for the same 2210mAh. The ABL-D2 costs $49.99 — same capacity, lower price, and a 5-function BMS with cell balancing. The cell balancing is the part that matters. It keeps all the cells at the same voltage through every charge cycle, so one cell doesn't drift and fail early. A pack without balancing might deliver 200 cycles before one weak cell takes the whole thing down. With balancing, you get the full 400 to 600 cycles the Li-ion chemistry is capable of.
I ran the numbers when I bought mine. The OEM replacement would have been $60 for the same 2210mAh. The ABL-D2 was $50. Same runtime, same fit, but with a better BMS and $10 less. That's not a difficult decision.
ABL-D2 for Roomba i3/i3+ — $49.99
2210mAh, 14.4V, 32Wh. 5-function BMS with cell balancing. 1-year warranty. Also fits e5 and e6.
Shop i3 Batteries →Frequently Asked Questions
Can I put a higher-capacity battery in my Roomba i3?
The i3 compartment can physically accommodate cells up to about 3500mAh — larger than the 2210mAh it shipped with. The ABL-D2 provides a direct-fit 2210mAh replacement at $49.99 with a 5-function BMS. For higher capacities, check that the battery's connector matches the i3's 4-pin plug — physically fitting is not the same as electrically compatible.
Does the i3 and i7 use the same battery?
No. Both are 14.4V Li-ion, but the connectors and form factors differ. The i3 uses ABL-D2. The i7 uses ABL-D1. They are not interchangeable.
How do I replace the battery in my Roomba i3?
Flip the i3 over. Remove two Phillips screws on the battery cover. Disconnect the old 4-pin connector — lift the locking tab with a fingernail first. Connect the new battery until it clicks. Replace the cover. Takes about 3 minutes. Calibrate with 2-3 complete charge-discharge cycles afterward.
Does the e Series battery fit the i3?
Yes. The e5 and e6 use the same battery as the i3. All three models are cross-compatible. The ABL-D2 fits all of them.
Is the upgrade worth it if I only use my i3 once a week?
At the same $49.99 price, there's no downside to the extra capacity — even for light use. More runtime per charge means the robot covers more floor before needing to dock. The cell balancing alone is worth it for long-term reliability.
