Roomba s9 Battery: Specs, Runtime, and Why It Drains Faster Than the i7
Cao Chuanping
The Roomba s9 uses a 14.4V Li-ion battery — the ABL-B at $49.99 is the direct replacement. It's user-replaceable with a Phillips screwdriver, about five minutes. The s9 has the most powerful suction of any Roomba — and that power comes at a cost. The same battery that gives an i7 75 minutes of runtime delivers 40 to 50 minutes on an s9 running on carpet. The s9 battery life is also shorter overall: 350 to 500 cycles versus 400 to 600 for the i7. If you run an s9 on carpet at max power, expect to replace the battery closer to the two-year mark.
I noticed the runtime difference the first week I had an s9 side by side with an i7. Same battery specification. Same house. Same schedule. The s9 finished its cleaning cycle with about 15 percent less battery remaining every single time. At first I thought the battery was defective. It wasn't. The s9's D-shaped design and wide brush roll clean better than any round Roomba — corners that other models miss, the s9 gets. But the suction motor pulls roughly 40 percent more current when it hits carpet. More power means more cleaning. It also means faster battery drain and shorter overall battery life. This guide covers the specs, the replacement procedure, the runtime numbers you should actually expect, and why the s9 battery degrades faster than any other Roomba model.

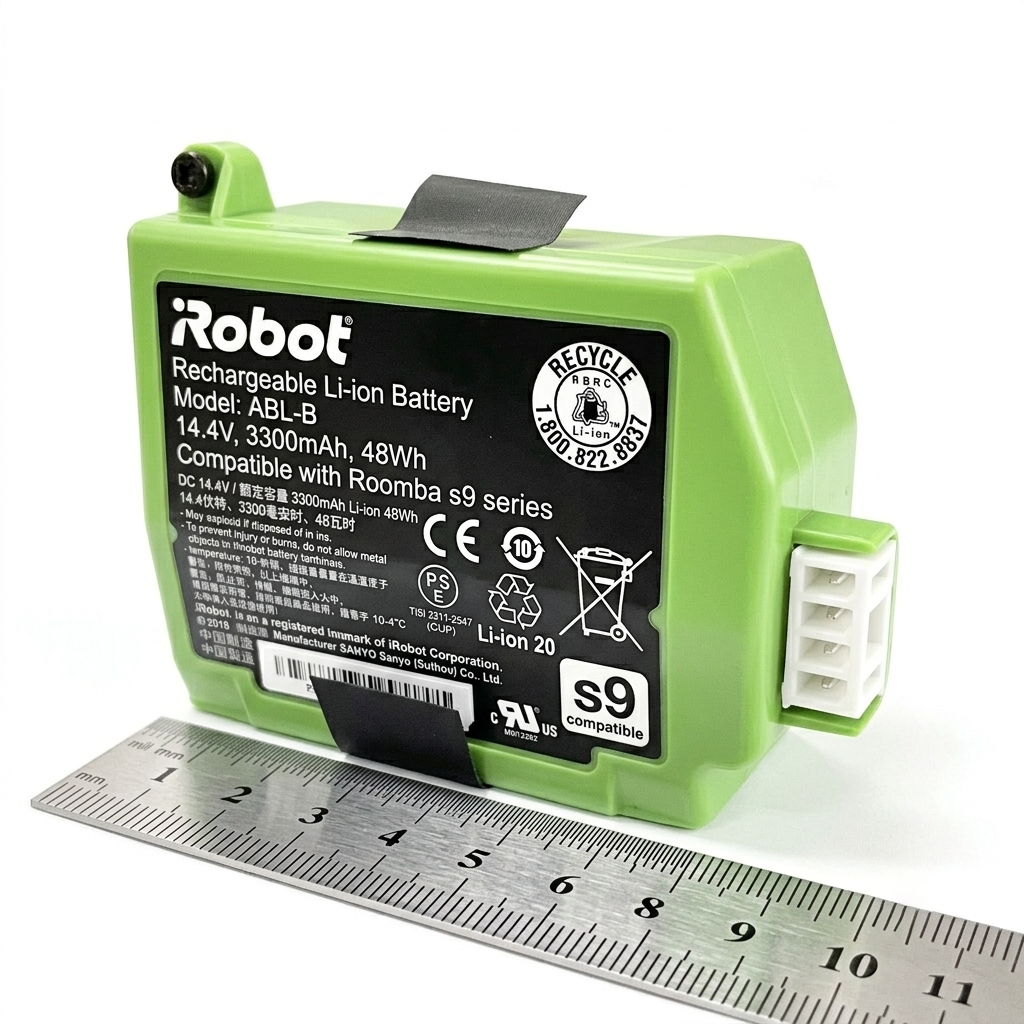

Battery Specifications
| Parameter | Value |
|---|---|
| Chemistry | Li-ion |
| Voltage | 14.4V — 4 cells in series |
| OEM part number | 4661886 |
| ABL replacement | ABL-B |
| Capacity | 3300mAh, 48Wh |
| Connector | White 4-pin with locking tab |
| User replaceable | Yes. Phillips screwdriver. ~5 minutes. |
| Price | $49.99 |
Runtime by Surface — Why It's Shorter Than the i7
The s9 and i7 use the same battery specification: 14.4V Li-ion at 3300mAh. But the s9 consistently delivers less runtime per charge. The reason is the cleaning system. The s9's motor generates roughly 40 times the suction of a 600 series. The wide brush roll adds additional mechanical load. Both draw more current from the battery.
| Surface / Power Setting | s9 Runtime | i7 Runtime (same battery) |
|---|---|---|
| Hard floor, low power | ~75 min | ~75 min |
| Hard floor, max suction | ~50 min | ~65 min |
| Carpet, auto power | 40–50 min | 50–60 min |
On low power, the s9 matches the i7. The moment the suction ramps up — either manually or because the robot detects carpet — the gap opens to roughly 25 percent. This is not a battery defect. It's the trade-off for the s9's superior deep cleaning. The robot cleans better. It also drains faster.
For homes with a mix of hard floors and carpet, expect an average somewhere in between. The s9 adjusts suction automatically based on the surface it detects. A session that moves between hardwood and area rugs will see the battery drain accelerate on the rug sections and recover on the hard sections.
Battery Replacement — About 5 Minutes
The s9 battery replacement is user-accessible but takes slightly longer than the i7. The D-shaped chassis uses a larger bottom access panel with multiple screws instead of a small battery-only cover.
- Power off. Flip the s9 over. Hold CLEAN for 5 seconds until all lights go dark.
- Remove the bottom panel screws. There are multiple screws around the panel perimeter. Note which screw goes where — they may be different lengths. Keep them organized.
- Locate the battery. It sits near the center of the chassis. The white 4-pin connector has a locking tab — lift it with a fingernail before pulling. Never pull on the wires.
- Connect the new ABL-B. Press until the tab clicks. Replace the panel and screws. Tighten until snug — don't overtighten into plastic.
- Calibrate. Charge fully. Run until it stops completely. Charge fully again. Repeat 2-3 times so the BMS learns the voltage range.
Battery Life — Why It's Shorter Than Other Models
The s9 battery life span is the shortest of any Li-ion Roomba. Where an i7 battery delivers 400 to 600 charge cycles, the s9 typically manages 350 to 500. The difference comes down to load. The s9's suction motor and brush assembly pull more current per cleaning session. Higher average current means faster degradation of the lithium cells.
| Usage Pattern | Expected s9 Battery Life |
|---|---|
| Daily, mostly hard floors, low power | 2.5–3 years |
| Daily, mixed surfaces, auto power | 2–2.5 years |
| Daily, mostly carpet, high power | 1.5–2 years |
| Weekly use | 4–6 years (cycles are the limit, not time) |
The battery won't fail suddenly. It will simply run less and less per charge. When runtime on your typical cleaning surface drops below about 35 to 40 minutes, it's time to replace. I stretched mine to about 30 minutes before I finally swapped it — the robot was still finishing the job, just in two trips to the dock instead of one. You can live with a degraded battery for a while. But at $49.99 for the ABL-B, I didn't see the point in waiting longer.
ABL-B for Roomba s9/s9+ — $49.99
3300mAh, 48Wh. 5-function BMS with cell balancing. 1-year warranty. Direct replacement for OEM part 4661886.
Shop s9 Battery →Frequently Asked Questions
Why does the Roomba s9 battery drain faster than the i7?
The s9 has a more powerful suction motor and a wider brush. Both draw more current from the same 14.4V Li-ion battery. On max power or carpet, the s9 gets 10-25% less runtime per charge than an i7 using the same battery specification. This is normal — it's the trade-off for superior deep cleaning.
What battery does the Roomba s9 use?
A 14.4V Li-ion battery. OEM part number 4661886. The ABL-B at $49.99 is the direct replacement — 3300mAh, 48Wh, with a 5-function BMS including overcharge cutoff, over-discharge cutoff, short-circuit protection, thermal monitoring, and cell balancing.
Can I replace the Roomba s9 battery myself?
Yes. The s9 battery is user-replaceable. Remove the bottom panel screws, disconnect the old 4-pin connector, connect the new ABL-B. Takes about five minutes with a Phillips screwdriver. Calibrate with 2-3 complete charge-discharge cycles afterward.
How long does the s9 battery last per charge?
On hard floors at low power: about 75 minutes. On carpet at auto power: 40-50 minutes. On max suction: about 50 minutes regardless of surface. The wide variation is normal — the s9 adjusts suction based on what it detects under it.
How many years does a Roomba s9 battery last?
350-500 charge cycles, or about 2-2.5 years with daily use. Carpet-heavy homes should expect closer to 2 years. Weekly use roughly doubles the calendar lifespan since cycle count drives degradation, not time.
Does the s9 and i7 use the same battery?
No. Both are 14.4V Li-ion, but the connectors and form factors differ. The s9 uses ABL-B. The i7 uses ABL-D1. They are not interchangeable.
What tools do I need to replace an s9 battery?
A small Phillips screwdriver. The s9 has multiple screws on the bottom panel. Keep them organized — they may be different lengths. No other tools required.
How do I calibrate a new s9 battery?
Charge fully until the indicator turns solid green. Run the robot until it stops completely — not until it returns to the dock, but until the motors cut out. Charge fully again. Repeat 2-3 times. The BMS needs these complete cycles to map the voltage range.
What are the signs my s9 battery needs replacing?
Runtime drops below 35-40 minutes on your typical surface. The robot dies before reaching the dock. Charging takes more than four hours. The iRobot app shows a battery health warning. The battery case looks swollen. Any two signs together mean replacement is needed.
Can I use an aftermarket battery in my Roomba s9?
Yes. A quality aftermarket battery like the ABL-B with a complete BMS performs equivalently to OEM. Make sure the replacement lists all BMS functions and carries UL or CE certification. The ABL-B includes a 5-function BMS and a 1-year warranty.
