How to Replace a Roomba 600, 700, or 800 Series Battery Under 2 Minutes, No Tools
Cao Chuanping
Replacing the battery in any Roomba 600, 700, or 800 series takes less than two minutes and does not need any tools. The battery door uses a simple plastic latch — press it, open the cover, unplug the old battery, plug in the new one, close the cover. All three series use the same battery design, so this procedure works identically on every model from the 610 to the 890.
When I replaced the battery in my Roomba 650 for the first time, I had a screwdriver ready. I assumed there would be screws, prying, something that required tools. There aren't. The 600-series battery door is latch-operated — the only Roomba generation designed this way. The 700 and 800 series inherited the same mechanism. Two minutes. One latch. One plug. This guide covers the entire procedure, the battery you need, and the calibration step that most tutorials leave out.
Which Battery You Need

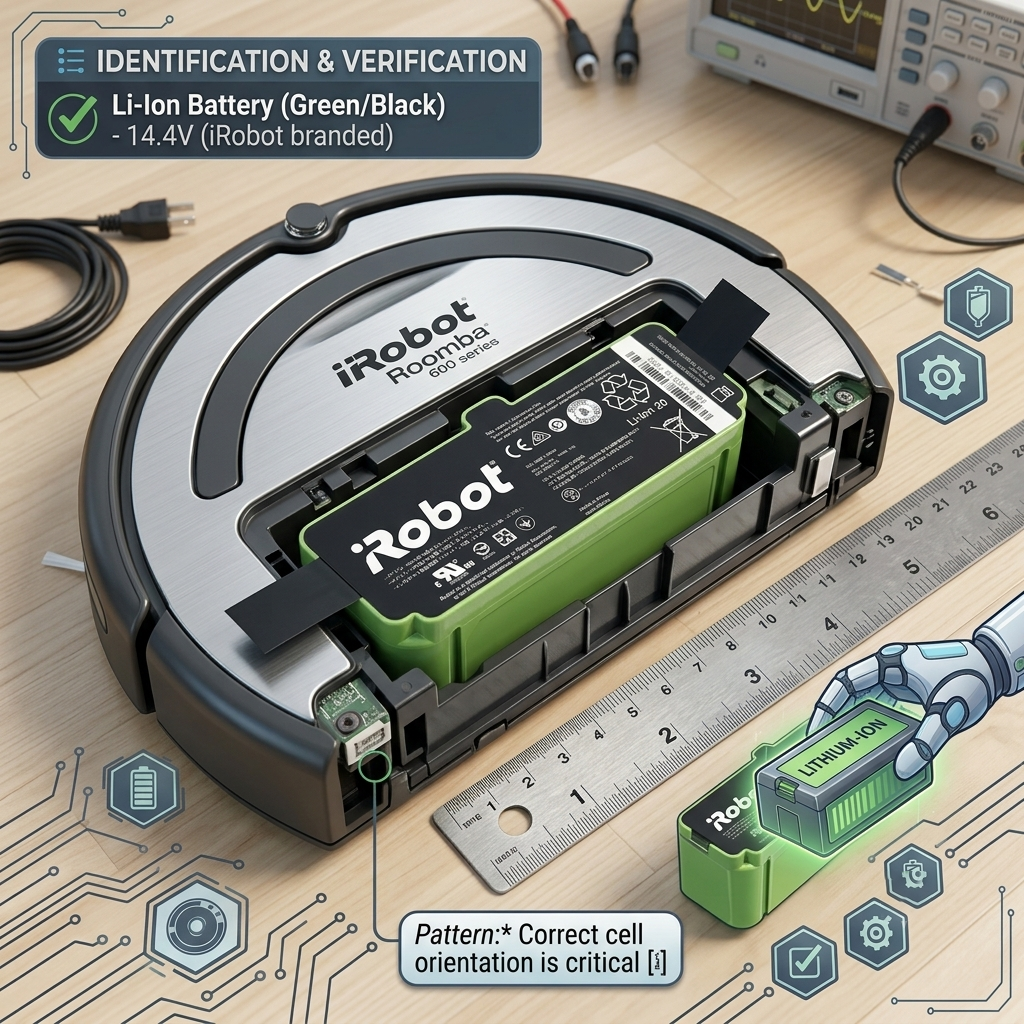

The 600, 700, and 800 series all use the same battery — iRobot part number 4905. Any replacement that references this number will fit. The three series are fully cross-compatible. A pack designed for an 890 works without modification in a 650.
We manufacture two direct-fit options for these models:
| Model | Capacity | Chemistry | Price |
|---|---|---|---|
| XLife Extended Life | Extended capacity | NiMH / Li-ion | $49.99 |
| 4376392 | 3300mAh, 14.4V, 48Wh | Li-ion | $49.99 |
Both packs include a complete 5-function BMS: overcharge cutoff, over-discharge cutoff, short-circuit protection, thermal monitoring, and cell balancing. The cell balancing circuit determines how many cycles you get — without it, one cell drifts and fails early, taking the whole pack. Every ABL battery ships with all five protections active and a 1-year warranty against manufacturing defects.
If you're upgrading from NiMH to Li-ion, the 4376392 is the direct fit. The 600 series dock charges using a NiMH profile, and the BMS inside the 4376392 handles the conversion safely. Read the full Li-ion upgrade analysis here.
Step-by-Step Replacement
The battery compartment is on the bottom of the robot. Flip it over on a clean, flat surface — a kitchen table works well. Good lighting helps. The latch tab is small and sits flush with the surrounding plastic. It's easy to miss on the first try.
Step 1: Power off the Roomba
Press and hold the CLEAN button for about 5 seconds. All indicator lights will go dark. Don't skip this — the robot's motors are strong enough to pinch your fingers if it wakes up while you're working inside the compartment.
Step 2: Open the battery door
Look at the bottom cover. Along one edge — typically the side opposite the brush assembly — there's a small rectangular tab, about the width of your thumbnail. It sits flush with the surrounding plastic. Press it firmly inward. The battery cover will release.
Some 700 and 800 series models use two tabs, one on each side of the cover. If pressing one side doesn't release the door, check the opposite edge. Press both simultaneously and the cover comes free.
Step 3: Remove the old battery
Inside the compartment, the battery connects through a white 2-pin plug. Grip the plastic connector housing — never pull on the wires — and pull straight out. The plug is a simple friction fit. It doesn't lock or clip. If it feels stiff, a gentle side-to-side wiggle will free it.
Lift the old battery out. If it was recently charging, it'll be warm to the touch. That's normal.
Step 4: Install the new battery
Line up the white connector with the socket inside the compartment. Push until you hear or feel a click — the plug is fully seated when the connector housing sits flush against the socket. Lay the battery flat. It only fits one way. The compartment shape prevents incorrect orientation.
Close the cover. Press along the edge until the latch clicks into place. If the cover resists closing, the battery isn't fully seated — open it, press the battery down flatter, and try again. Never force the cover closed against battery resistance. The plastic latch can snap, and replacing it means replacing the entire bottom cover.
Calibration After Install
Installing the battery is half the job. The other half is teaching the BMS where the voltage limits are.
- Charge fully. Place the Roomba on the dock. The indicator pulses amber while charging, then turns solid green — typically about 2 hours.
- Run until it physically stops. Not until the app says the battery is low. Not until the robot decides to head home. Until the motors cut out and the lights go dark. The BMS needs to see the actual voltage floor — where the cells can no longer sustain motor operation. That point is below the "return to dock" threshold.
- Charge fully again. Back on the dock until solid green.
- Repeat. Two to three complete cycles give the BMS enough data for accurate reporting. Two cycles are usually sufficient. Three produce the best calibration.
Genuine ABL Batteries for Roomba 600/700/800
XLife Extended Life and 4376392 (3300mAh). Complete 5-function BMS with cell balancing. 1-year warranty. Free replacement for any manufacturing defect.
Shop Roomba Batteries →Frequently Asked Questions
How long does it take to replace a Roomba 600 battery?
Under 2 minutes for the physical swap. The battery door is latch-operated — no screws, no tools. Charge time after installation is about 2 hours, plus 2-3 cleaning cycles for calibration.
Do I need any tools?
No. The 600, 700, and 800 series use a latch mechanism. No screwdriver, no pry tools. This is the only Roomba generation designed for a fully tool-free battery replacement.
How do I calibrate the battery after replacement?
Charge fully until solid green. Run the Roomba until it stops completely — not until it returns to the dock, but until the motors cut out. Charge fully again. Repeat 2-3 times. The BMS needs these complete cycles to map the actual voltage range.
Do I need to reset my Roomba after installing a new battery?
Yes. Remove from dock, hold CLEAN for 10 seconds until the light ring pulses, redock. This clears the old battery's data. Then calibrate with 2-3 complete charge-discharge cycles.
Can I use a 700 or 800 series battery in my 600?
Yes. All three series use the identical battery specification — 14.4V, same connector, same physical dimensions. A pack designed for an 890 functions without modification in a 650.
What if the battery door latch won't open?
Check the opposite edge. Some 700 and 800 series models have two latches — one on each side. Press both simultaneously. If stuck from debris, use a flathead screwdriver to gently pry the tab, but be careful not to snap the plastic.
