How to Reset and Calibrate a Roomba Battery?
Cao Chuanping
A reset clears software errors. Calibration helps a new battery's BMS understand the voltage limits. A reset takes 10 seconds — hold CLEAN off the dock, wait for the pulse, redock.Calibration takes 2 to 3 full charge-discharge cycles. The Roomba runs until it physically stops, not until it chooses to go back to the dock. Most people confuse the two. Most people also skip calibration entirely, which is why their battery meter lies to them for the next two years.
When I replaced the battery in my Roomba 650 for the first time, I installed it, docked it, and called it done. For the next six months, the app would show 60% remaining one minute and flash a red low-battery warning the next. I assumed the battery was defective. It wasn't. I had skipped calibration — the BMS inside the new pack was guessing at the voltage curve because I never gave it the data it needed to learn. Two full discharge cycles later, the meter was accurate and stayed that way. This guide explains what a reset actually does, what calibration actually does, and why mixing them up costs people money on batteries they don't need.
Reset vs Calibration — They Are Not the Same Thing
A reset tells the robot to forget what it knew about the old battery.A calibration instructs a new battery to understand its own limits. They serve different problems and take different amounts of time.
| Reset | Calibration | |
|---|---|---|
| What it does | Clears stored battery profile from the robot's memory. Reboots the battery management interface. | Teaches the new battery's BMS where the actual voltage floor and ceiling are. |
| How long | 10 seconds | 2-3 full charge-discharge cycles (several hours each) |
| When to use | Charging errors, inaccurate meter, after firmware glitches, after installing a new battery | After installing a new battery, after swapping batteries between robots, when the meter drifts over time |
| Affects maps/schedules? | No — CLEAN-button reset preserves maps, schedules, and Wi-Fi | No |
Think of it this way: a reset is turning the robot off and on again. Calibration is teaching it what "full" and "empty" actually mean for the specific cells inside the new pack. You need both when you install a new battery — reset first to clear the old data, then calibrate to teach the new limits.
When to Do Each — Quick Reference
| Situation | Reset | Calibrate |
|---|---|---|
| New battery installed | ✅ Yes — clears old battery data | ✅ Yes — 2-3 cycles |
| Charging error (fast amber blink, Error 5) | ✅ Yes — try before buying hardware | — Not needed |
| App shows wrong battery percentage | ✅ Yes — may fix software glitch | ✅ If reset doesn't fix it |
| Robot died and won't turn on | Not yet — charge 1 hour first | ✅ After recovering |
| Battery swapped between robots | ✅ Yes — clear previous robot's data | ✅ Yes — to relearn in new robot |
| Normal battery aging (gradual runtime decline) | — Won't help | — Won't restore lost capacity |
The last row matters.If your battery used to last 90 minutes and now only lasts 40 after two years of daily use, resetting it or calibrating it won’t restore those minutes. The cells have physically degraded. Calibration can fix a lying meter — it can't fix dead cells.
How to Reset — One Procedure, All Models
The reset sequence is identical across every Roomba from the 600 series through the j7. It takes 10 seconds and requires no tools.
- Remove the Roomba from the dock. It must be off the charging contacts for the reset to register.
- Press and hold the CLEAN button. Count to 10. Don't guess — use a timer. The light ring will pulse or an audible tone will sound when the reset completes.
- Release the button and redock. Place the Roomba back on the charging dock.
The reset clears the robot's stored battery calibration data and reboots the battery management interface. It resolves the majority of software-state charging errors — fast amber blinking, Error 5, "Unable to charge" messages in the app. It does not affect maps, schedules, or Wi-Fi settings.
If the robot does not respond — no light pulse, no tone — the battery may be completely depleted. Leave it on the dock for at least one hour before attempting the reset again.

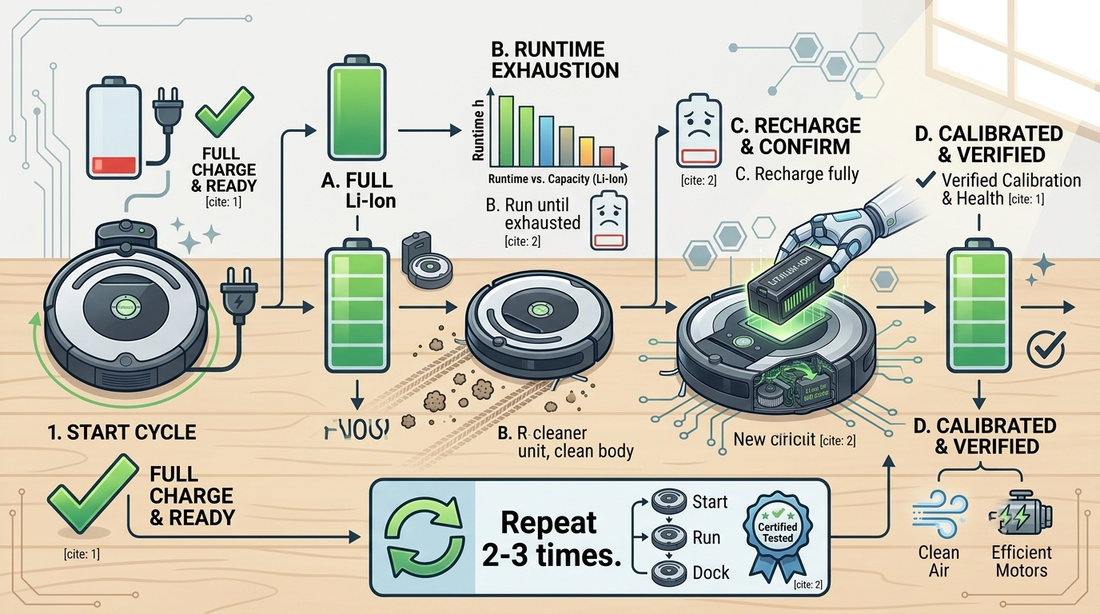

How to Calibrate — and Why "Return to Dock" Isn't Enough
Every lithium battery pack contains a BMS that tracks voltage, current, and estimated remaining capacity. When you install a new battery, the BMS has no historical data for those specific cells. It must learn the voltage curve through complete charge-discharge cycles.
Until it learns, the battery meter will be inaccurate. Sometimes showing 40% when the actual charge is 80%. Sometimes showing 5% when you still have 20%. The battery works fine either way — it just can't report its state correctly.
- Charge fully. Place the Roomba on the dock. The indicator pulses amber while charging, then turns solid green when complete — typically about 2 hours for most packs.
- Run until it physically stops. Not until the app says the battery is low. Not until the robot decides to head home. Until the motors cut out and the lights go dark. The BMS needs to see the actual voltage floor — where the cells can no longer sustain motor operation. That point is well below the navigation system's "return to dock" threshold.
- Charge fully again. Back on the dock until solid green.
- Repeat. Two to three complete cycles give the BMS enough data to map the voltage curve accurately. Two cycles are usually sufficient. Three produce the best calibration.
The Mistake Almost Everyone Makes
Letting the Roomba return to the dock on its own instead of running it until it physically stops.
The "return to dock" trigger fires when the battery reaches approximately 10-15% remaining — well above the true voltage floor. The BMS needs to see where the cells can no longer sustain motor operation. That happens lower. If you stop at "return to dock" every time, the BMS never learns where the bottom actually is. It calibrates against the wrong floor, and the meter stays inaccurate.
For NiMH batteries in the 600, 700, and 800 series, this advice runs in the opposite direction for routine maintenance. NiMH benefits from a periodic full discharge every 2-3 weeks to prevent voltage depression. But that's maintenance, not calibration. The calibration procedure above applies primarily to Li-ion packs, which is what most Roomba models use today.
Genuine ABL Batteries — Pre-Calibrated BMS Ready to Learn
ABL-D1, ABL-D2, ABL-B, ABL-F, and 4376392. Complete 5-function BMS on every pack. Follow the calibration steps above for accurate runtime estimates. 1-year warranty.
Shop Roomba Batteries →Frequently Asked Questions
How do I reset my Roomba battery?
Remove the Roomba from the dock. Press and hold the CLEAN button for 10 seconds — the light ring will pulse or you'll hear a tone. Place it back on the dock. This clears the old battery data and resolves most software-related charging errors. Works on every Roomba model.
How do I calibrate a new Roomba battery?
Charge fully, then run the Roomba until it stops completely — not until it returns to the dock, but until the motors cut out. Charge fully again. Repeat 2-3 times. The BMS needs these complete cycles to map the actual voltage range of the cells. Without calibration, the battery meter will be inaccurate for the life of the pack.
What's the difference between a reset and calibration?
A reset clears the robot's stored battery data — useful after errors or when the meter is wrong. Calibration teaches a new battery's BMS where the voltage limits are. Reset: 10 seconds. Calibration: 2-3 full charge-discharge cycles. You need both when installing a new battery.
Do I need to reset my Roomba after replacing the battery?
Yes. Remove from dock, hold CLEAN for 10 seconds, redock. This clears the old battery's profile. Then calibrate with 2-3 complete cycles. Skipping the reset can cause the robot to apply the old battery's degradation curve to the new pack.
Why is my Roomba battery not charging after replacement?
Three things to check:
(1) the battery connector is fully seated — it should click into place,
(2) the charging contacts on both the robot and dock are clean — wipe with rubbing alcohol,
(3) perform a reset — hold CLEAN for 10 seconds off-dock.
If all three check out and the battery still won't charge, contact the seller. All ABL batteries include a 1-year warranty against manufacturing defects.
How long should I charge a new Roomba battery before first use?
Until the indicator light turns solid green — approximately 2 hours. There's no benefit to leaving it on the dock longer than that. The important step is the calibration cycles that follow, not an extended initial charge.
